Crescendo G3 Processor Upgrade Card

Crescendo G3/NuBus プロセッサー・アップグレード・カード

最新販売価格


Power Mac 6100, 7100, 8100 & 8115; Performa 6110/6112/6115/6116/6117/6118; Workgroup Server 6150, 8150, 9150, Power 100, 120 とRadius 81/110用(AVとVCカード対応).

The Sonnetｪ Crescendoｪ G3 processor upgrade card transforms your NuBus-based Power Macintoshｪ into a G3 Powerhouse! The Crescendo G3 incorporates the revolutionary PowerPCｪ G3 processor and ultra high-speed backside cache, delivering up to a 900% overall speed improvement. This easy-to-install card is compatible with your existing hardware, applications and software. The Crescendo G3 automatically adjusts to the highest possible processor speed for your particular Macintosh model, ensuring the best performance possible from your computer.


特徴

  • G3 240-266/512KB, 240-266/1MB, 300/512KB, 300/1MB と 400/1MB

    The Sonnet Crescendo G3 features lightning fast processor speeds ranging from 240-300 MHz with 512K backside cache, 240-300 MHz with 1MB backside cache or 300-400 MHz with 1MB backside cache. Now owners of first generation Power Macs can enjoy the same unparalleled performance breakthroughs of G3 processor technology at the fraction of the cost of purchasing a new G3 machine. The advanced innovations of the G3 processor with backside cache allow you to work faster, smarter and more efficiently in all your daily tasks--from simple word processing and accounting work to high-end desktop publishing, graphics and digital imaging. And for die-hard game addicts, the Crescendo G3 makes the perfect upgrade for fueling the power hungry requirements of all the hottest 3D games and multimedia software available for Power Macintosh.

  • バックサイドキャッシュ
    Sonnet Crescendo G3は超高速 512K バックサイドキャッシュあるいは 1MB バックサイドキャッシュ付(動作速度はCPUの動作速度の1/2です) 。

  • FPU内蔵
     レンダリングと科学計算に必須のFPUはCPUに内蔵

  • 簡単なCPU 速度自動設定機能
    The Sonnet Crescendo G3 has no complicated DIP switches or control panels to configure. Once the processor upgrade card is installed, it automatically sets the clock speed of the processor to the maximum speed possible for your particular Power Mac. The highest available clock speed is a function of the computer's fixed bus speed, which varies with each model. This auto-configuration feature ensures you get the best possible performance from your computer.


    • Crescendo G3 自動動作速度設定表

    製品名

    製品番号

    CPU 動作速度(MHz)

    ２次キャッシュ容量*

    本体CPU速度 / バス速度

    60 / 30

    66 / 33

    100 / 33.3

    110 / 36.7

    80(120) / 40

    Crescendo G3/NuBus 250/512

    C61-G3-512-250

    240

    264

    267

    257

    260

    512KB

    Crescendo G3/NuBus 266/1M

    C61-G3-1M-266

    240

    264

    267

    257

    260

    1MB

    Crescendo G3/NuBus 300/512

    C61-G3-512-300

    240

    264

    267

    293

    300

    512KB

    Crescendo G3/NuBus 300/1M

    C61-G3-1M-300

    240

    264

    267

    293

    300

    1MB

    Crescendo G3/NuBus 400/1M

    C61-G3-1M-400

    300

    330

    333

    366

    400

    1MB

    *バックサイドキャッシュの動作速度はCPUの速度の1/2になります。

    対応機種

    Power Mac 6100, 6100 AV, 7100, 8100, 8115
    Performa 6110, 6112, 6115, 6116, 6117, 6118
    Workgroup Server 6150, 6150, 8150, 9150
    Power Computing 100, 120
    Radius 81/110



  • オプションのアダプターキットでPDS AV あるいは ビデオカード対応

    • The Crescendo G3 upgrade cards have been designed to be universally compatible with all supported Power Macs. For the Power Macintosh 7100 and 8100, an optional adapter kit allows the processor direct slot PDS video card or AV card to attach to the Crescendo G3 through a pass-through connection. With the adapter kit, the video or AV card will occupy the middle NuBus slot.

  • Mac OS 8.6に対応

    • The G3 processor is the first PowerPC processor fully optimized to take advantage of the Mac OS. With the Sonnet Crescendo G3 installed in your Power Mac, you'll be able to enjoy top notch performance from Mac OS 8 and your software applications.

  • 取付簡単
    Utilizing plug-and-play technology, the Sonnet Crescendo G3 plugs easily into the PDS slot of your Power Mac.

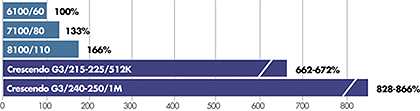

  • MacBench 4.0 結果:


    Crescendo G3 NuBus Speed Graph


互換性

  • System 7.1.2 〜 Mac OS 8.6（日本語版を含む)に対応 (ドライバーソフト Ver. 1.3.4以上が必要)。
  • Crescendo G3 は 製品番号： 「C61A-71」と「C61A-81」のアダプターで PM7100 とPM8100の PDS AV あるいは ビデオカードをサポートします。
  • Crescendo G3 は 6100 DOS と NuBus カードをサポートしません。また、現在には G3/NuBus 250MHz/512KB と G3/NuBus 266MHz/1MB のみ 6100 AV カードをサポートします。


スペック

  • CPU: PowerPC G3.
  • FPU: PowerPC プロセッサー内蔵
  • バックサイドキャッシュ: 512K (2:1 ratio) or 1MB (2:1 ratio).
  • 製品番号: C61-G3-512-250, C61-G3-1M-266, C61-G3-512-300, C61-G3-1M-300とC61-G3-1M-400
    7100 と 8100 PDS AV ビデオアダプター製品番号: C61A-71 と C61A-81.
